KLONER3D®320

3D PRINTERS > OFFICE SERIES KLONER3D®320 > PRODUCTS OVERVIEW

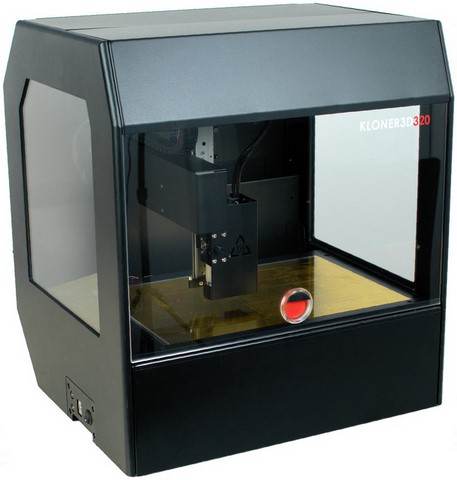

KLONER3D320

The perfection that cancels everything else

KLONER3D®320 is the largest model of the OFFICE series. Ideal for making architectural, mechanical models or any other large project.

The print area is of 320x240x140 mm in an external dimensions of just 510x460x600 mm.

  • No mechanical calibration.
  • Possibility of dual print head.
  • No maintenance by the user.
  • Ready for use.
  • Print environment enclosed with work area at temperature controlled.
  • Easy loading print material.
  • Interchangeable head.

 Technical Specifications

DIMENSIONS
external dimensions (WxDxH)
510x460x600 mm
weight
32 kg

MECHANICS
structure
ground aluminium frame
external cover
metal sheet, PVC and plexiglass
print bed
heated adjusted aluminium
axis movements
XY linear axis
Z double linear axis

PRINTING
print technology
Fused Filament Fabrication (FFF)
print area (XYZ)
320x240x140 mm (10,60 lt)
min. layer height
0,035*-0,05 mm
motion resolution
XYZ 0,01 mm
dual extruder
yes**
filament diameter
1,75 mm
3* mm
nozzle diameter
0,3*-0,5-0,8* mm
printable materials
multimaterial


* Depending on the print head.
**With dual extruder the printing area is reduced.

SOFTWARE
software
windows, mac and linux
file types
STL, OBJ, GCODE

OPERATING REQUIREMENTS
electric
100-240 Vac 50-60 Hz; ~300W
operation
temperature: 15°C-35°C
humidity: 15%-55%
